Question about speakers help pls :)

sixsamuraisoldier

Honorable
May 13, 2013
52
0
10,580
0
so, my question was, that i was looking at this set of sepakers: Logitech X-540 5.1 Surround Sound Speaker System With subwoofer, however im not sure i can hok up all the speakers AND the subwoofer to my asus z87-pro motherboard. I'm a complete noob at audio, so sorry if im making a mistake. Help please, and thanks in advance :)


boju

Distinguished


You're right to go, x540s need 3 outputs from the motherboard, Lime Green, Black and Orange each having 2 channel.

Lime: Front left and right
Black: Rear left and right
Orange: Center and sub

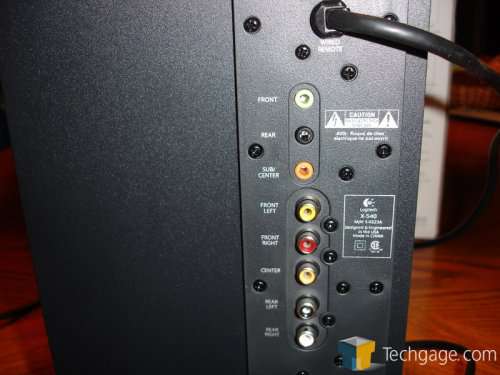

Back of the sub unit of the x540 will have the inputs for the 3 color coded audio cables and outsputs for all it's speakers.
