3 Ohms subwoofer on 4ohms amplifier

Thines_1

Commendable
Aug 15, 2016
14
0
1,560
0

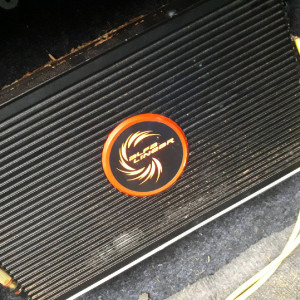

Hello all, so i have a Alfa Linear AL320.4 (4CH power amp) in my car and i have a S-BD808SW which has 3 ohms impedance. Amp outputs 4 ohms when wired in bridged. So is it possible to connect the sub to the amp? Im afraid of blowing the woofer up since it still works fine. Thanks.




kerberos_20

Distinguished
Dec 24, 2011
136
0
18,660
20
There is no problem with connecting a 3-ohm speaker to that amplifier. Only be aware that an impedance is a resistance expressed as a complex number, which means it has a real part (that corresponds to the DC resistance) and an imaginary part that behaves differently based on the frequency of the current going through it.

Since the two impedances are not matched, there will be some reflections at some specific frequencies.

It is highly probable that this won’t be heard on a signal below 20kHz.

However, if your amplifier is built to deliver it’s rated output to a 4-ohm speaker, then your speaker will draw more current. All things being equal, it might sound louder but your amplifier might heat up too much or if it is well-designed, you could burn the loudspeaker itself.


Thines_1

Commendable
Aug 15, 2016
14
0
1,560
0


Yes, it outputs 4 ohms when connected to both CH3 and CH4 in bridged mode. Atleast, a broken woofer before this was 4 ohms and connectted in bridge. How about connecting it to single channel? Will it work that way and safer?
