is it possible to upgarde cpu to my 2570p Elitebook

Status
Not open for further replies.

adarc8

Commendable
Nov 24, 2016
23
0
1,560
0
Hello i have HP 2570p Elitebook with i7 3520m.. i added to him stick of 4gb ram( so now i have 8 ram), 500gb ssd, and a 960gtx 2gb using EXP GDC v8.0 adapter with a 430W Seasonic S12 PSU..
my performance is pretty amazing, the gpu that i added increasred the performance by far, almost doubled the fps.
right now im playying only csgo (the pc sits on Dock station connected to a 24'' 144hz monitor, mouse and keyboard..)
i want to upgrade my pc, and im not sure if should i buy a motherboard, cpu, ram and combine the PSU, SSD and GPU that i already have, or just upgrade the laptop cpu..(?)
i dont need massive performance, and i heard about i7 3740QM that might be the best option for me and can sit properly in the socket im using.. but what about the heat and stuff.. will it be possible?
im sure that the replacing the cpu in my laptop wont be a problem to me, but will it work?

btw how about buying it from here:
http://www.ebay.com/itm/Intel-SR0UV-Intel-Core-i7-3740QM-2-7GHz-G2-Socket-CPU-Processor-/142413878700?epid=1329723183&hash=item21288755ac:g:eQcAAOSw1BlZQCet


sicily428

Notable
May 26, 2017
246
0
910
36
MERGED QUESTION
Question from adarc8 : "upgrade cpu from i7 3520m to 3740qm.. worth it?"











your cpu has a pga socket FCPGA988 so it is upgradable

here more infos
http://www.tomshardware.co.uk/answers/id-3430499/cpu-upgradeable-laptops.html



https://ark.intel.com/it/products/64893/Intel-Core-i7-3520M-Processor-4M-Cache-up-to-3_60-GHz

that cpu i7-3520M is 35w TDP and that i7-3740qm is hotter
https://ark.intel.com/products/70847/Intel-Core-i7-3740QM-Processor-6M-Cache-up-to-3_70-GHz

you need to check your bios because a new cpu needs a bios support

here a list of cpus with the same socket
i7-3610qm

i7-3630qm

i7-3720qm

i7-3740qm

i7-3820qm

i7-3840qm


adarc8

Commendable
Nov 24, 2016
23
0
1,560
0


i didnt understood what r u trying to say..
and btw i found even stronger cpu i7 3940xm


Ecky

Honorable
Moderator
Feb 3, 2013
12
0
10,590
7
If it's socketed (may not be), and if that laptop was offered with the 3740QM as a factory option, it will probably work. If that CPU was never offered in it, you'll very likely have cooling issues.


R_1

Estimable
Herald
Sep 8, 2015
316
0
5,310
107
you already have the fastest supported CPU. while the 3740 may fit the socket it is unknown if the BIOS will recognize the CPU - being a quad core octa-thread unit, all supported chips are dual core quad thread CPU's
I do not think it will work.
https://www.manualslib.com/manual/626288/Hp-Elitebook-2570p.html?page=9#manual
the service manual for that unit, page 9 shows the supported CPU's and all are 2c-4t units.

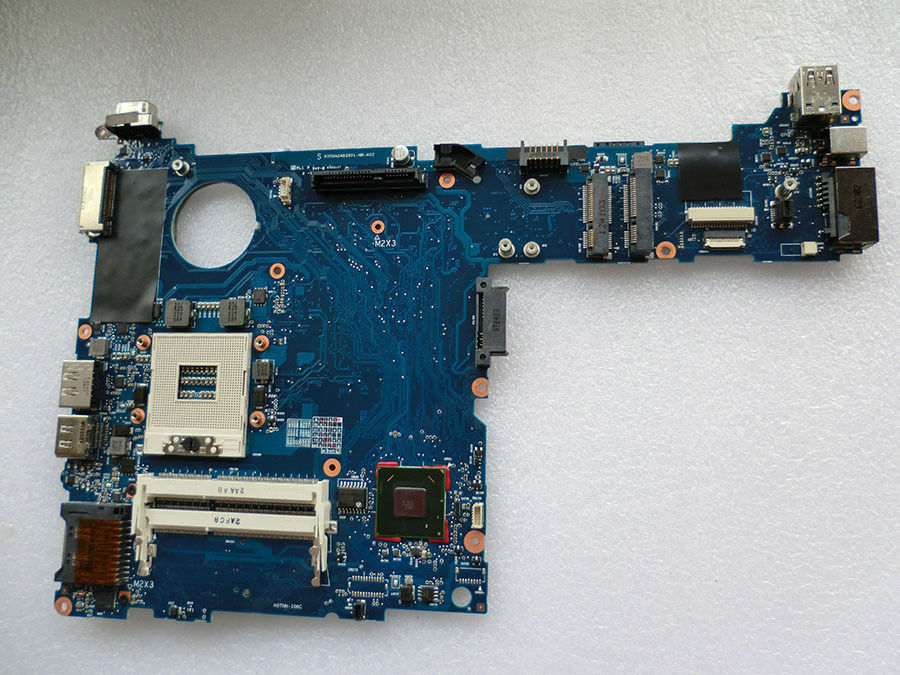

page 93 shows a socketed CPU, non soldered


adarc8

Commendable
Nov 24, 2016
23
0
1,560
0


there must be something to do isnt it? maybe upgrading bios or something




R_1

Estimable
Herald
Sep 8, 2015
316
0
5,310
107
not upgrade, full custom written BIOS. you'll maybe need more power and more efficient cooling & kiss all battery life goodbye.
I don't know if that is even possible, a new unit would be cheaper methinks

the trade-off of a laptop is very limited upgrade path, its more like a step.


adarc8

Commendable
Nov 24, 2016
23
0
1,560
0

i have 430W connected through Expresscard, its powering my gpu.. is it possible to somehow use it to power also the cpu if needed..? and btw my brother have same laptop as i have, and he have larger batter that he bought.. its might be the solution for me? cause i can take it from him..


Ecky

Honorable
Moderator
Feb 3, 2013
12
0
10,590
7


If it was never offered with a 45w CPU, chances are good the motherboard doesn't have the physical power circuitry to handle one.


R_1

Estimable
Herald
Sep 8, 2015
316
0
5,310
107


in order asked.
No. not without a lot of expensive equipment and a good electrical engineer to make a brand new adapter. the motherboard was designed to power and run the CPU it has in it- maximum. no wiggle room. none of the needed power regulators, chokes, capacitors, and other circuitry needed to make it ready for the 4c-8t CPU.

The larger battery is simply a larger reservoir, the energy output from the contacts is exactly the same as yours (assuming the same model). like soda cups, he has the 54Oz cup and you have the 32 oz. the straw is the same size. you need a bigger straw and the missing parts to use the power delivered via the straw


adarc8

Commendable
Nov 24, 2016
23
0
1,560
0


Aha.... thx for explanation bro...



adarc8

Commendable
Nov 24, 2016
23
0
1,560
0






update guys!!
i just talked with a pc guy, that had the same laptop as me 2570p and he said:
"I.. and many other 2570P owners, removed the factory i5/i7 CPU and installed a i7 quad core (i7-3740QM, i7-3720QM, i7-3630QM, i7-3610QM). No praying necessary. It works great."


sicily428

Notable
May 26, 2017
246
0
910
36
MERGED QUESTION
Question from adarc8 : "upgrade cpu from i7 3520m to 3740qm.. worth it?"











your cpu has a pga socket FCPGA988 so it is upgradable

here more infos
http://www.tomshardware.co.uk/answers/id-3430499/cpu-upgradeable-laptops.html



https://ark.intel.com/it/products/64893/Intel-Core-i7-3520M-Processor-4M-Cache-up-to-3_60-GHz

that cpu i7-3520M is 35w TDP and that i7-3740qm is hotter
https://ark.intel.com/products/70847/Intel-Core-i7-3740QM-Processor-6M-Cache-up-to-3_70-GHz

you need to check your bios because a new cpu needs a bios support

here a list of cpus with the same socket
i7-3610qm

i7-3630qm

i7-3720qm

i7-3740qm

i7-3820qm

i7-3840qm


mik264

Prominent
Jan 31, 2018
4
0
510
0


Hey, Can I use factory heatsink? or I need better


adarc8

Commendable
Nov 24, 2016
23
0
1,560
0


Umm i disnt changed the heat sink but if u sonehow can i belive u should cause its more hotter.. Btw ny fps in csgo jumped from 120 to around 200 so it was a great idea.. (im using an external gpu ofc..)


mik264

Prominent
Jan 31, 2018
4
0
510
0


Oh okay, and what version of bios do you use?

Thanks for reply.


adarc8

Commendable
Nov 24, 2016
23
0
1,560
0


I didn't changed bios at all.. I dunno which version I have.. Just plug and play for me


mik264

Prominent
Jan 31, 2018
4
0
510
0


Did you have to do DSDT Override when you connected your eGPU to your laptop using expresscard cable?


adarc8

Commendable
Nov 24, 2016
23
0
1,560
0
Yes i did dsdt override and the setup 1.35.. It was hard but rly worth it.. Performance were amazing.. But right now i already moved on to pc cause i found a crazy deal


mik264

Prominent
Jan 31, 2018
4
0
510
0


Okay, so, I have last question...... are you using i7-3740qm?
