Solved! Need Help Rewiring Headphone Jack

[tbarkwell2]

Hey there,

I have a pair of iSound headphones that the jack got broken on. I am trying to replace the jack now, but surprise surprise, the colors of wires don't match anything I have read online. I was hoping someone might be able to give me some insight.

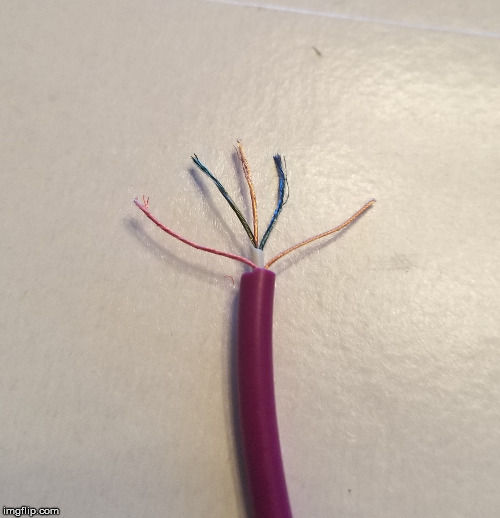

This is the stripped wire. From left to right: A copper wire with purple, a green wire, a bare wire, a blue wire, and a copper wire with white. As seen in the pic, the green, bare, and blue are inside another white sheath within the cord.

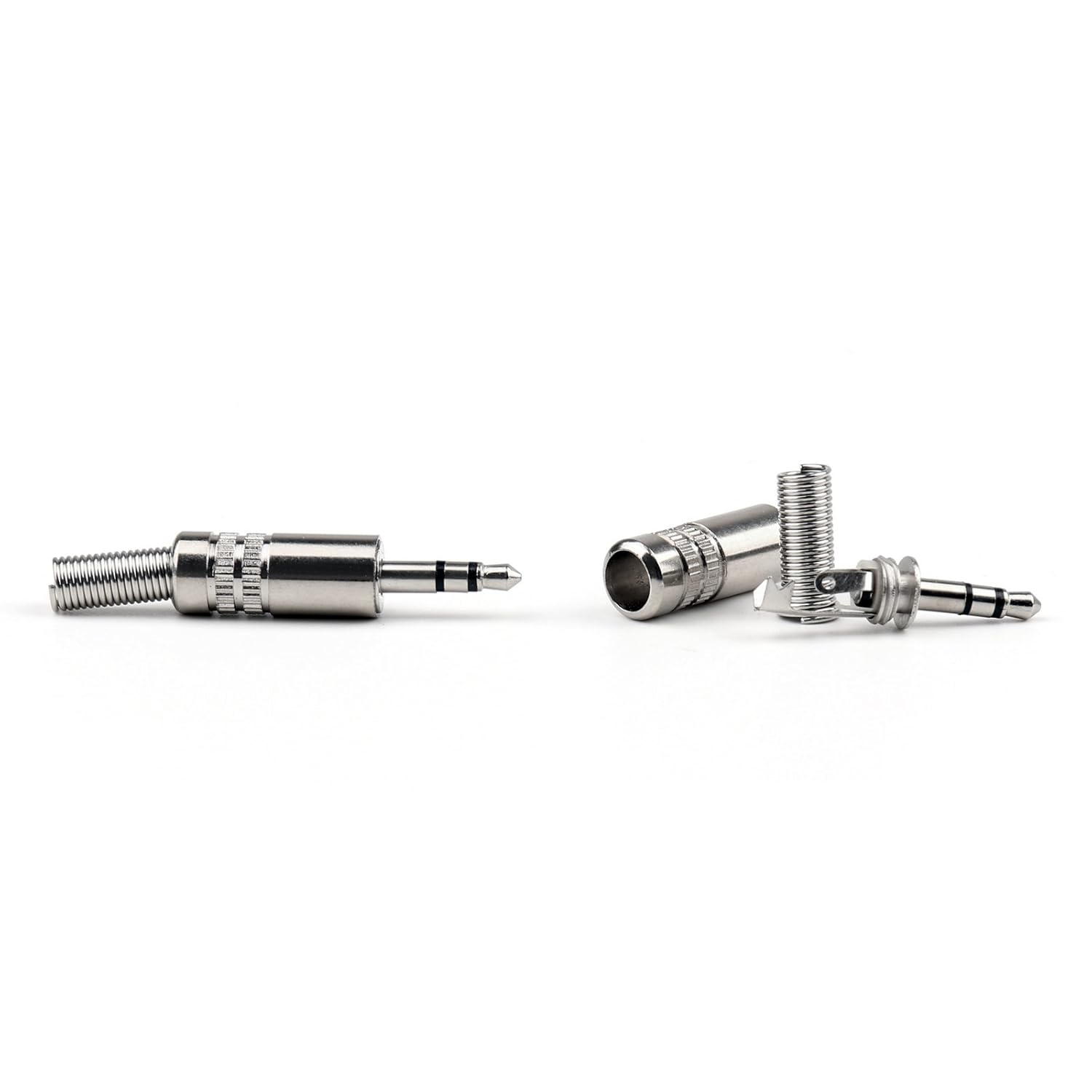

The headphones support a mic and volume control. The replacement jacks I am using are only three contact. Is it possible to fix them this way? How do I determine which is left, right, ground, and what do I do with the other wires?

I have plugged the jack in with some music on and been touching wires to the contacts, but have had no luck getting any sound from anything.

Any suggestions?



[scout_03]

you could check this http/pinoutguide.com/Home/Tele35s_pinout.shtml but if you have a voltmeter it wil be easier .



[kerberos_20]

blue and green is left and right channel, no color wire is ground
rest would be for controling volume , guess u cant connect those 2 if your jack has 3 wires



[scout_03]

this coulld help if you could find a 4 pins jack http/www.circuitbasics.com/how-to-hack-a-headphone-jack/
