Where do you plug speakers in on jvxxv-511

[James_340]

Where do j plug speakers In on my jvc xv-511



[dexxterlab97]

What kind of speaker you are using? According to the manual there is are RCA port red/white in the back. If you are trying to connect a regular computer speaker then get something like RCA to 3.5 mm adapter and plug it i. Something like this as an example
https/www.amazon.ca/30S1-01260-Stereo-Female-Y-Cable-Connector/dp/B000I23TTE/ref=sr_1_3?s=electronics&ie=UTF8&qid=1470107326&sr=1-3&keywords=rca+to+3.5mm



[Ironsounds]

Hello... it has just "line level" outputs on it... plug it into a Receiver/Mixer Amp, and your speakers to them.



[dexxterlab97]

Hello... it has just "line level" outputs on it... plug it into a Receiver/Mixer Amp, and your speakers to them.

http/4.bp.blogspot.com/-W4kOsODOqBg/UpEEanfpcnI/AAAAAAAAWpk/eXpH0_qOG3Y/s1600/P0279516_1.jpg

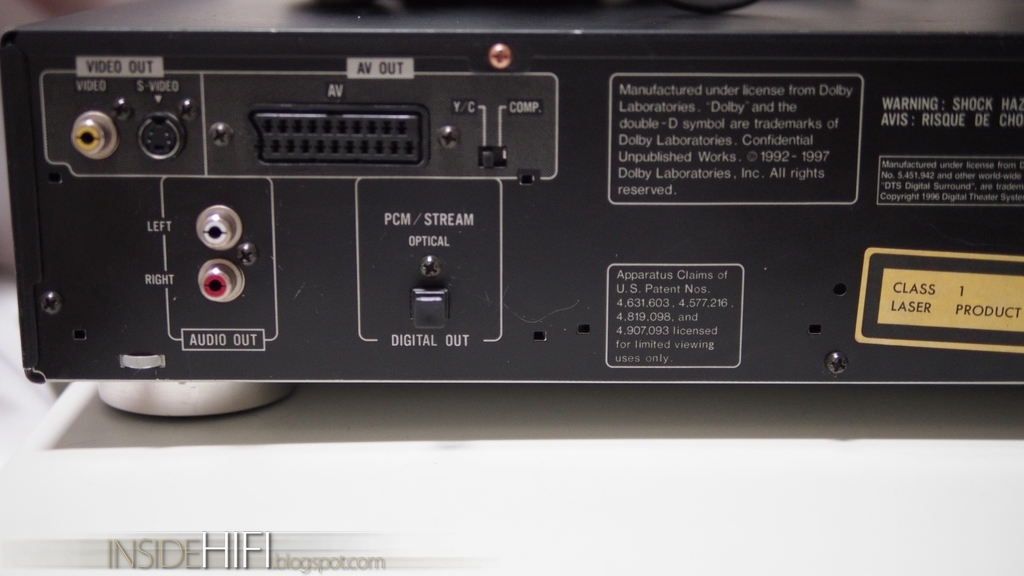

No. Look at this picture. It has standart rca ports



[Ironsounds]

Hello... Line level IS audio and RCA jacks is typical to all component equipment... did you notice there was no text stating "speaker impedance" or 'output wattage" this would be a typical warning for a Speaker output... also physical bare wire hookups.

But there is also digital optical output for a receiver/input too... typically S/PDIF cable, https/en.wikipedia.org/wiki/S/PDIF

You could hook this unit up to Amplified Speakers, but Volume control will be on the back of your speakers... thus a Receiver makes the best connect/Home option.
