Asus ROG GL 502 Loose screw holder on motherboard / Loose socket holder heat sink/ Need community suggestion

Status
Not open for further replies.
Jul 20, 2018
2
0
10
0
I have asus Rog laptop and the base socket where you screw down the heatsink screws is loose and came off as a result i am experiencing high temps because of loose connection between the processor and the heatsink , i am thinking of using epoxy adhesive to re paste the socket but confused kindly suggest me the best possible solution

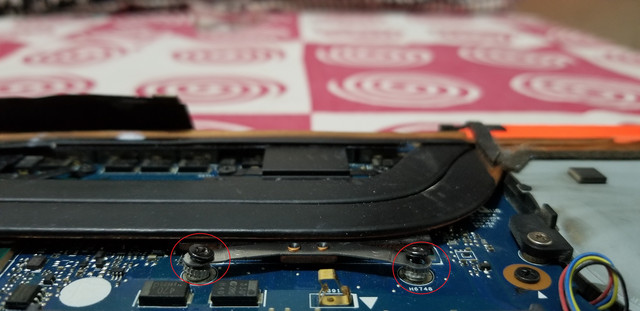

i have taken picture and uploaded video for you guys to understand better need immediate help

Regards



youtube link below

http://


Lutfij

Splendid
Moderator
Looks like you added too much torque to the screws to remove the threading inserts. You could use epoxy but the heat in the chassis/case can and will degrade the epoxy's adhesive strength and as such will bring you tot he same point you're in now.

Using something like an epoxy is also not a good idea since the liquid epoxy can be absorbed by the motherboard.

You could use a thin shimmy packing tape/foam to add pressure to the center of the cooling assembly so the chassis/case will exert a force to push against the heatsink assembly. Mind you, the solution isn't as sound as having to tighten down the screws.

Status
Not open for further replies.
