Solved! No ANT in on back of tv- how do I get regular tv if I can’t plug aerial in

[sianjasmine]

Hi,

I just bought a smart TV model aquos lc-40ui7352e but it has no ANT in point on the back of the tv to plug an aerial into.

It has inbuilt freeview so I want to watch that, I don’t want to pay for Sky or Virgin or anything.

How can i hook my aerial up to this tv- this is the aerial. https/www.amazon.co.uk/dp/B00KV9C8LY/ref=pe_3187911_189395841_TE_dp_1

At the back it only has hdmi, rf in, sat in, AV in.

Thanks



[madmatt30]

RF in is the same as antenna in.



[sianjasmine]

RF in is the same as antenna in.

Ah okay haha that’s a start, then the Male aerial cable doesn’t fit into the RF socket, I have tried lots of different adapters but none of them seem to fit the one that’s on the end of the aerial and the RF socket at the same time. Do you know what sort of adapter I would need for this?

Thanks



[asoroka]

show picture of socket



[sianjasmine]

show picture of socket

https/postimg.cc/gallery/d00pepuk/



[madmatt30]

Where's the TV from, that's not a standard rf connection



[sianjasmine]

Where's the TV from, that's not a standard rf connection

I bought it from Curry’s online... I went in to ask them but the men at the store weren’t sure and told me to go to screwfix. And the staff at screwfix weren’t sure either ...



[madmatt30]

Are you 100% sure that white plastic insert in the centre doesn't pull out??

It looks like a female coax but the internal should be bare because the outside ring on the aerial connection needs to slot inside not outside.



[sianjasmine]

Are you 100% sure that white plastic insert in the centre doesn't pull out??

It looks like a female coax but the internal should be bare because the outside ring on the aerial connection needs to slot inside not outside.

I’m 100% sure it doesn’t. This is the closest thing I’ve found to what it looks like. I’ll post a link below .. except mine doesn’t have the screw thread on the outside so I can’t even look for the part that would fit this really...

https/www.amazon.co.uk/dp/B07H2D533D/ref=asc_df_B07H2D533D57936539/?tag=googshopuk-21&creative=22146&creativeASIN=B07H2D533D&linkCode=df0&hvadid=294797661583&hvpos=1o4&hvnetw=g&hvrand=15925778832378690462&hvpone=&hvptwo=&hvqmt=&hvdev=m&hvdvcmdl=&hvlocint=&hvlocphy=9045141&hvtargid=pla-530379277629



[madmatt30]

Yeah that's an f type, normally for satellite or cable connections.

I'm going off forum with your picture to ask someone else's advice.

If you marry up the plug from the antennae to the socket on the TV is the outer ring on the antennae side smaller, same size, or slightly bigger than the silver outer ring on the TV.

An another note, if curry's / pc world who are still a major electrical distributor can't find you a plug to fit the rf socket on a TV they are selling there is something kind of wrong.



[madmatt30]

From another forum from someone who works in TV sales/repair

'I used to sell and repair loads of tvs and seen this may times before...From your picture that is definatley the tip of a rf plug stuck in the socket.. Possibly from the manufacturing plant where they plug in a test lead to to the tv to check the function of the tuner prior to dispatch. If you have a pair of pliers I would grip the shiny metal case ( the stuck plug ) and gently rotate it whilst pushing the pliers down to create a downward twisting action'

& I'm inclined to agree, that entire bottom part on the TV looks like the remains of a male rf plug.

The rf socket itself should only extend the same length as the sat f type socket next to it.



[sianjasmine]

Yeah that's an f type, normally for satellite or cable connections.

I'm going off forum with your picture to ask someone else's advice.

If you marry up the plug from the antennae to the socket on the TV is the outer ring on the antennae side smaller, same size, or slightly bigger than the silver outer ring on the TV.

An another note, if curry's / pc world who are still a major electrical distributor can't find you a plug to fit the rf socket on a TV they are selling there is something kind of wrong.

Ah thankyou so much. The aerial plug is exactly the same size as the rf socket. It’s like the aerial would have to be bigger? Or the adapter at least. It’s very odd I’ve never seen it before.

ah I think they were just young staff who didn’t really have a clue They said to go back when the manager was there. Which I will do at some point if I can’t find the part and perhaps return the tv If i can’t resolve it.



[madmatt30]

You are missing what me & the other fella are saying

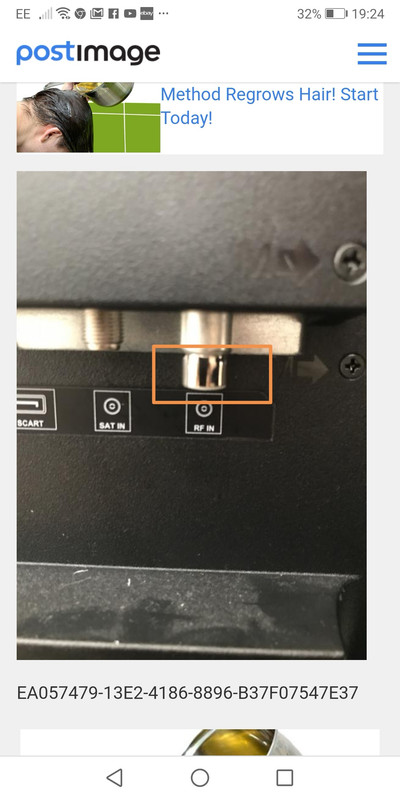

What I've boxed in orange where the shape & colour of the metal change looks like the broken part of an actual male rf plug.

It looks like that whole shiny silver bit should pull straight out!



[sianjasmine]

You are missing what me & the other fella are saying


What I've boxed in orange where the shape & colour of the metal change looks like the broken part of an actual male rf plug.

It looks like that whole shiny silver bit should pull straight out!

Oh gosh you’re completely right!! The riddle is solved! The whole silver thing came out with plyers! Thankyou so much. I’m actually going to complain to curry’s because that’s awful. Thankyou so much for your help.



[jsmithepa]

LOL. Good lord. Could be a Farmer's "seen a thing or two" commercial.



[madmatt30]

Apparantly fairly common,Ive never seen it personally.

Would be interested in how that flat panel aerial performs,Ive never had much luck with internal freeview aerials myself.



[jsmithepa]

This explains some of those posts "broke my connector!" if u ever wonder what? how?



[Jgnzjw]

Hello, I would really appreciate some help. I am also facing a similar problem except my tv is not a smart tv and the silver/gold thing wouldnt budge :"))

Picture attached here thank you!!



[Wolfshadw]

This thread is over two years old. Please start a new thread for your issue.

Closing
Wolfshadw
Moderator
